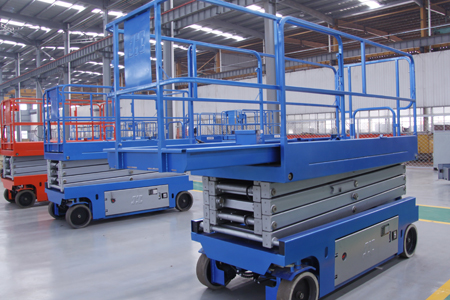

Self-propelled scissor lifts

Self-Propelled Scissor Lifts for Sale

Upright Scissor Lifts Small Scissor Lifts

Electric Scissor Lifts Design

Hydraulic-Scissor-Lift

Hydraulic and Electrical System of Scissor Lifts

All machine functions are performed by the hydraulic system. The whole hydraulic system is divided in two parts: one part is used for driving and steering function, the other part is used for platform lifting function.

All the functions are driven by a hydraulic pump, the rate of flow is 16L/min. When the pump is activated, it supplies hydraulic fluid under pressure to the function manifold, where the direction valves and control valves are located. To protect from over pressurization of the hydraulic system, the pump is provided with a pressure relief valve.

In this system, Use four six-volt batteries to drive the hydraulic pump and lift function controls. Batteries are charged by external power source.

Technical Parameters of Self-Propelled Scissor Lifts

Product Specifications GTJZ06 GTJZ08 GTJZ10
Dimensions
Working Height 8.0m 9.8m 11.8m
Platform Height-A 6.0m 7.8m 9.8m
Platform Height Stowed-B 1.13m 1.26m 1.27m
Platform Length-C 2.3m 2.48m 2.55m
Platform Extension Length 0.9m 0.9m 0.9m
Platform Width-D 0.85m 0.85m 1.15m
Height Stowed-E 2.35m 2.47m 2.42m
Length-Stowed-F 2.3m 2.48m 2.55m
Overall Width-G 0.85m 0.85m 1.15m
Wheel Base-H 1.88m 1.88m 2.12m
Ground clearance-I 0.1m 0.1m 0.09m
Productivity
Guardrail Height 1.0m 1.0m 1.0m
platform Dimensions 2.3×0.84m 2.3×0.84m 2.55×1.15m
Platform Capacity 320kg 250kg 450kg
Platform Extension Capacity 120kg 100kg 120kg
Lift-up 40s 40s 60s
Lift-down 25s 25s 40s
Maximum Drive Height 6.0m 7.8m 9.8m
Weight 2100kg 2210kg 2500kg
Ground Bearing Pressure 6.05kg/cm2 6.15kg/cm2 7.38kg/cm2
Chassis
Drive Speed (Platform Lowered) 0-3.2km/h 0-3.2km/h 0-3.2km/h
Drive Speed (Platform Elevated) 0-0.8km/h 0-0.8km/h 0-0.8km/h
Turning Radius Inside/Outside 0m/2.02m 0m/2.02m 0.26m/2.5m
Grade-Ability 25% 25% 25%
Maximum Tilt
Non-marking Solid Tires 406×125mm 406×125mm 406×125mm
Power Source
Battery 6V×4/225Ah 6V×4/225Ah 6V×4/225Ah
Charger 30Aautomatic 30Aautomatic 30Aautomatic
Hydraulic Reservoir 16L 16L 16L

Features of Hydralic Scissor Lifts Battery of Scissor Lifts

  • Automatic pothole protection system
  • Removeable platform control box
  • Proportional controls
  • Slide-out battery trays
  • All motion alarmHorn
  • Roll-out deck extensionFork lift pockets, lift from side and rear
  • Four 6V, 225Amp-hour deep cycle batteries
  • Tilt cut-oof safety system
  • Spring-loaded gate
  • LED battery condition indicator

Performance of Electric Scissor Lifts Platform

  • Reliability and versatility, enhance efficiency.
  • Excellent mobility.
  • Compact body can easily pass through single and double channel doorway, using non-marking solid tire.
  • Special locations.
  • Feature of low noise is perfectly suitable for the noise-sensitive environment, such as office buildings, shopping malls, hotels, schools,etc.
  • Compact and flexible.
  • Most models are equipped with zero inside turning radius capability, can be easily and flexibly operated in crowed working conditions such as construction site,elevator, and narrow corridor.
  • Lift-down, turning, forward and backward movements can be easily operated by one person.
